Drum Twister Laying Up / Armouring Line
For 2/3/4 power cables
• Drum twist laying up line for 2/3/4 power cables
• Equipped with rotating pay offs, sector adjust device, eccentric taping heads, rotating caterpillar and rotating take up
• This line is also available for armouring with galvanized steel wire by adding one main rotating pay off and armouring device.
• This application requires the armouring steel wires pay off supplied by coils or bobbins

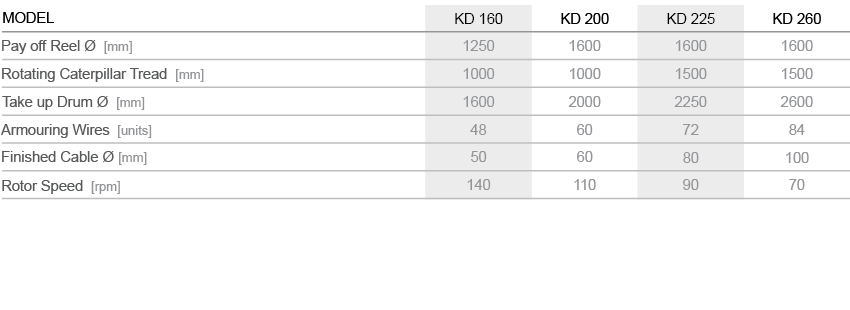

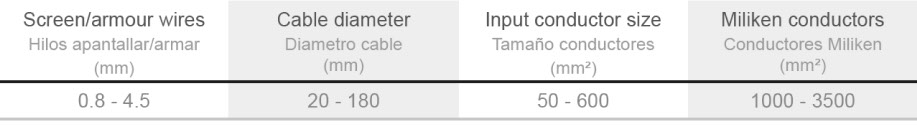

TECHNICAL DATA
YOU MAY ALSO BE INTERESTED IN
Drum Twister Laying Up for Telephone Cable
Two different configurations

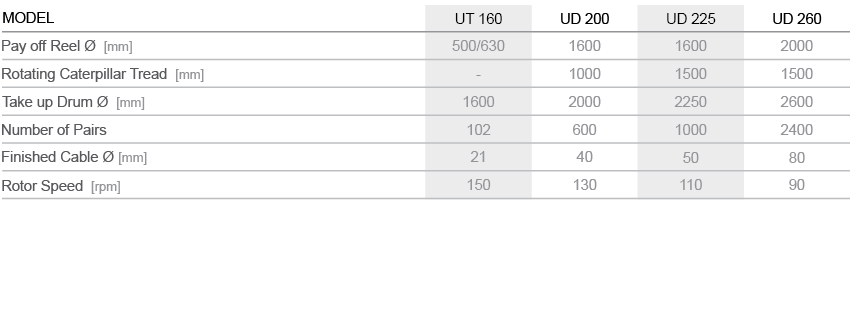

• On telephone cable we have two different configurations: Drum Twist Unitizing Line (UT) and Drum Twist Cabling Line (UD)
• Drum Twist Unitizing Line: for manufacturing 100 pair units and equipped with roll off pay offs, group of oscillating/binding heads,
lay plate, eccentric taping head and rotating take up
• Drum Twist Cabling Line: for laying up telephone cables up to 1600/2000/2400 pairs and equipped with roll off pay offs, a triple
• formation plate with closing die, eccentric binding head, rotating caterpillar and rotating take up

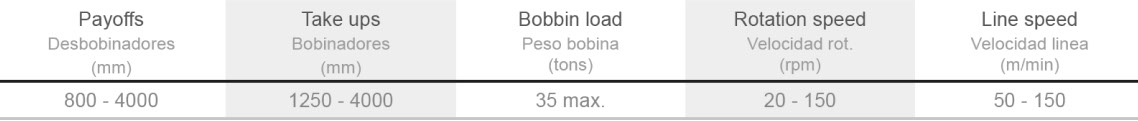

TECHNICAL DATA
YOU MAY ALSO BE INTERESTED IN

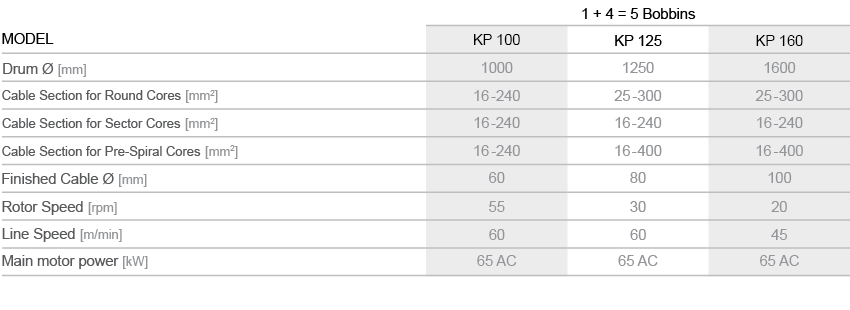

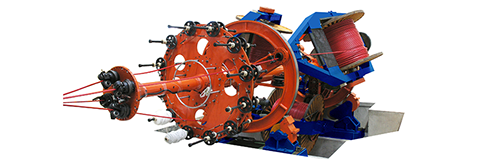

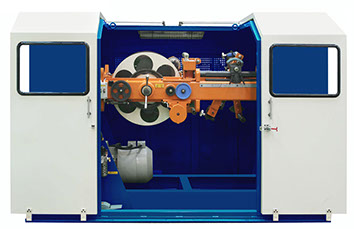

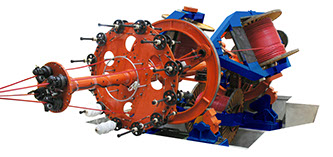

Laying Up Machine for 3-5 Power Cables
With 3-5 round cores, and straight or sector shape cores
• Planetary type laying up machine with both back twist and without back twist movement
• Designed for laying up power conductors with 3-5 round cores, and straight or sector shape cores
• Highly productive lay up process with low energy consumption
• Equipped with dual wheel pulling capstan when running medium size cables or with haul off caterpillar for bigger power cables
• The machine is provided with HMI+PLC control system for pre-setting laying up pitch and for speed synchronization with the take up
• Optionally yarn filler plate design for a maximum of 24 pieces of filling bobbins

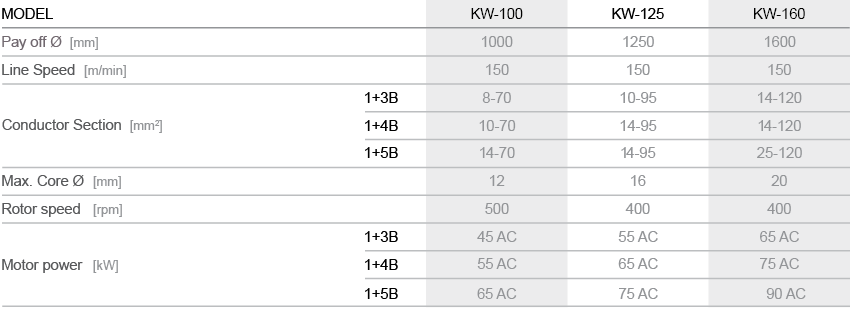

TECHNICAL DATA
YOU MAY ALSO BE INTERESTED IN

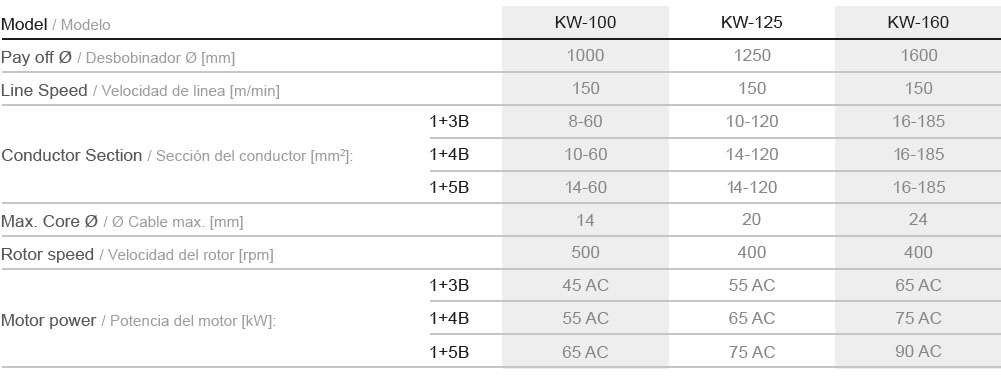

Bow Type Laying Up Machine
From 2 to 6 cores of ABC aerial cables
• Bow type laying up machine working with back twist movement to lay up from 2 to 6 cores of ABC aerial cables, control cable
• or power cable
• This machine can use either dual wheel pulling capstan for medium size cables or haul off caterpillar for larger size power cables
• Main rotor, pulling capstan (or caterpillar) and take up unit are independently driven by AC servo motors
• HMI+PLC control system for pre-setting laying up pitch and speed synchronization with the take up unit
• Tension control done through band brakes manually adjustable
• Additional tension control system consisting in powder brakes. The set is complete with an automatic electrical compensation control
• In order to keep the tension constant when going from full bobbin to empty bobbin
• Optional yarn filler plate, design for a maximum of 24 pieces of filling bobbins
TECHNICAL DATA

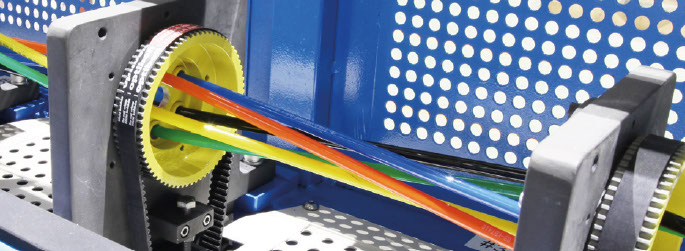

Double Twist Pairing Machine
For 2 or 4 communication cables
• Double Twist Pairing Machine
• Bow type pay offs to get 100% back twist work
• For manufacturing pairs (2) or quads (4) communication cables
• Pay off's tension control device that guarantees a correct and identical core tension

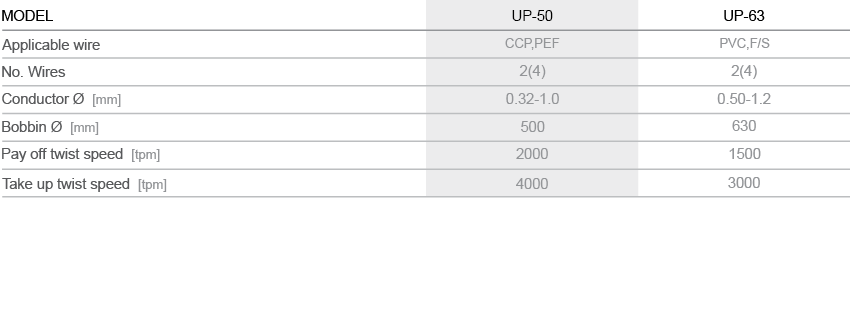

TECHNICAL DATA

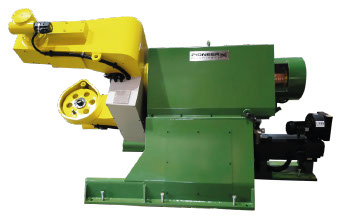

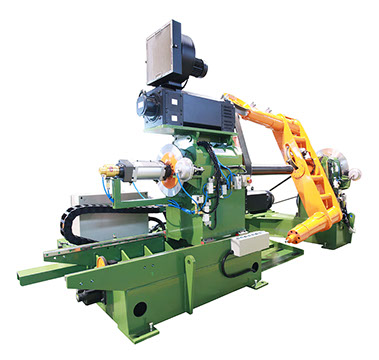

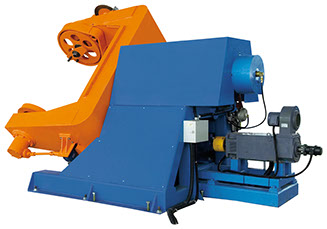

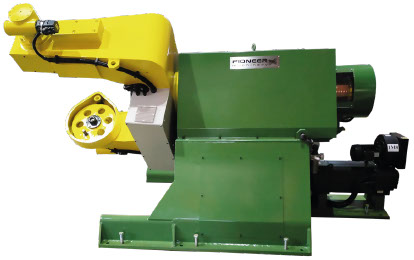

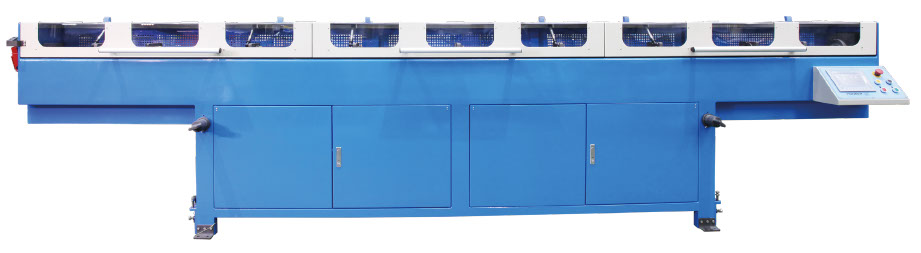

Single Twist Stranding Machine
Cableadora simple torsión

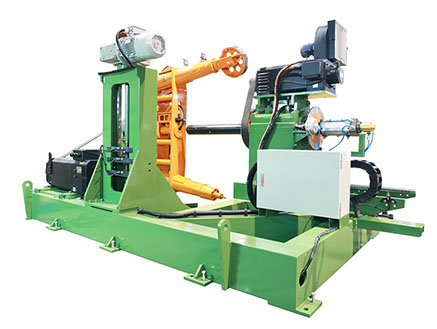

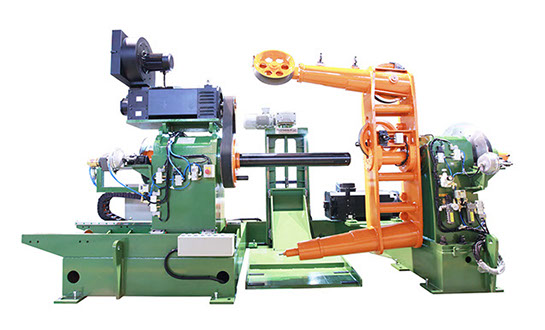

• Single twist strander for laying up insulated conductors, stranding of bare flexible ropes and armouring with galvanized steel wires.
• The machine can work either as a strander or as a back twist pay-off for multipass processes.
• Big pulleys diameter for smooth cable deviation.
• Electric loading platform at floor level allowing an easy loading and unloading of the bobbin without the need of underground foundations.
• HMI+PLC control system for setting of lay length, lay direction and speed synchronization.

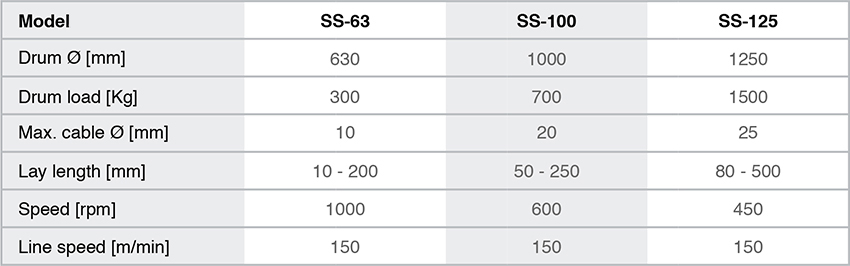

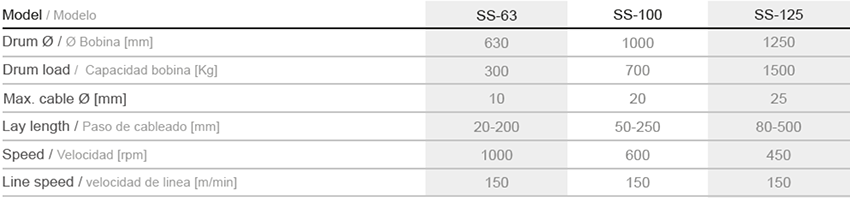

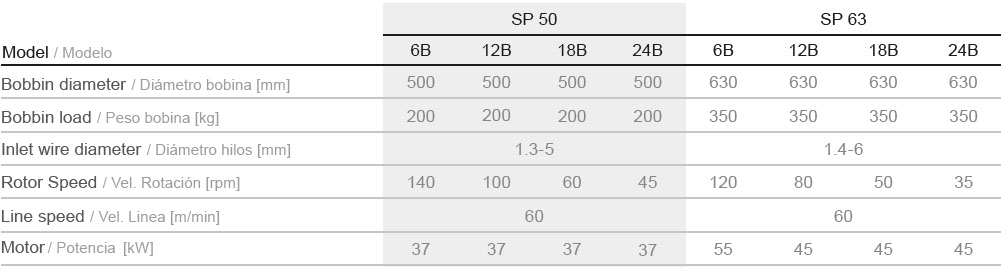

TECHNICAL DATA
YOU MAY ALSO BE INTERESTED IN
Drum Twister
Telephone Cable
3-5 Power Cables
Bow Type
Double Twist Pairing
Single Twist
