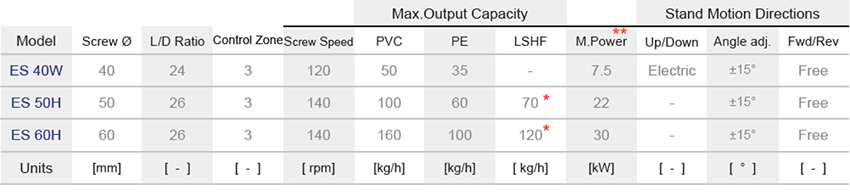

•      Horizontal and vertical compact type universal injection join combined with main extruder's cross head for PVC color stripping or

•      PVC, LDPE, NYLON skin sheathing

•      Can also be used as a sub-extruder for multi-layer extrusions

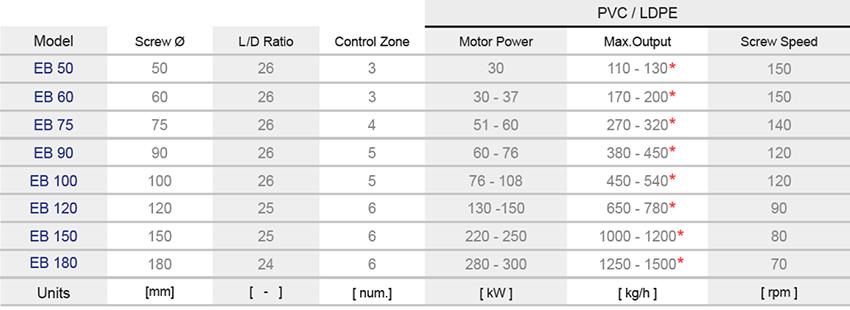

•      The motor powers shown on this table are referred for PVC compound

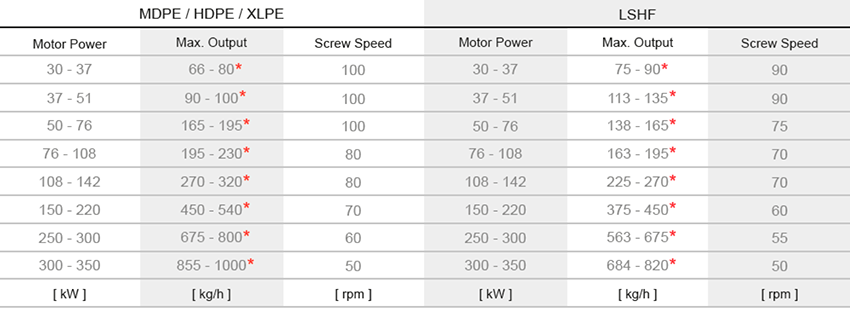

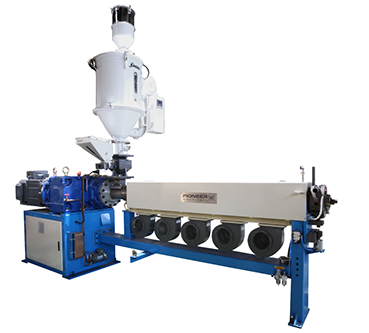

•      Power cable, electric cable and telephone insulation / sheathing line for several thermoplastic compounds such as PVC, PE, XLPE

•      and LSHF

•      Optionally the line can be equipped with a tandem extruder for bedding & sheathing purposes

•      The line is completed with single or dual floor traversing pay off / take up, single pass cooling trough and haul off caterpillar

•      For larger cable the line can be optionally supplied with an additional inlet haul off caterpillar

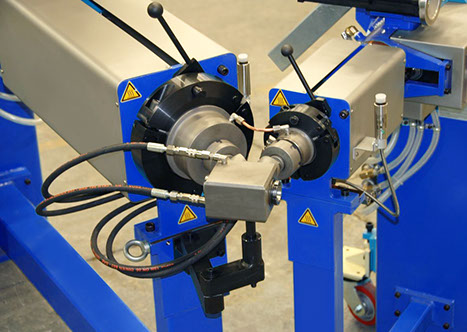

•      Optionally the extruder can be equipped with a co-extruder (32-40-50-60 mm) for color skinning

•      Building wires insulation lines suitable for several thermoplastic compounds such as PVC, PE, XLPE and LSHF

•      Optionally the insulation line can be equipped with a co-extruder for color skinning & stripping purposes

•      Our range is completed with THHN insulation lines by including a tandem extruder for PA (Nylon) outer jacketing

• Silicone rubber cables offer excellent properties against fire protection demands, can be used on many different applications requesting extreme environments and temperature ranges between -55ºC and up to 260ºC without loosing any one of their physical properties.
• Silicone rubber cables are flame resistance and low smoke.
• Pioneer produces the whole range of extrusion lines for silicone cables equipped with a combination of infrared and hot air tunnel curing ovens that keeps the cable clean allowing to be used on medical equipment.

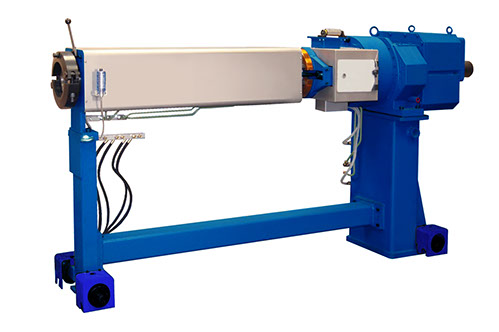

• Prepared with feeding rolls design
• Short screw length (L/D) ratio (12D) optimized for processing silicone rubbers.
• Water cooling with temperature regulation on barrel zones and screw.
• Self-centering water cooling cross-heads with thermo regulation
• Production varies as a function of the different densities available on the market

• Rubber cables offer very good electrical and mechanical properties, with an excellent resistance to abrasion, tear resistance, high temperatures, oil and chemical atmospheres.
• Have a big variety of applications either in low voltage as well as medium voltage.
• All of them are manufactured in Class 5 or Class 6 in order to guarantee a great flexibility.
• Cured on steam atmospheres at pressures about 25 bars and temperatures up to 225ºC
• Can be designed to extrude up to three layers in one single operation according the cable design between 0.75 sqmm and 630 sqmm, single core of multicore.
• Equipped with feeding rolls for rubber strips and/or pellets.

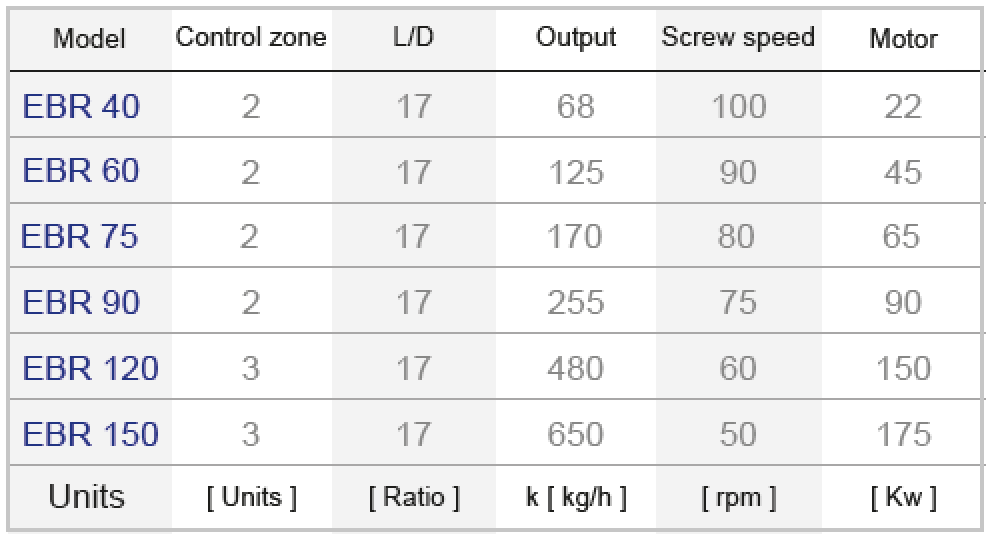

• Screw design (L/D) ratio (17D) optimized for processing rubber compounds.
• Water cooling with temperature regulation on barrel zones and screw.
• Self centering water cooling cross-heads with thermo regulation.
• Equipping hydraulic telescopic splice box to connect to the die head.
• Stainless steel seamless pipe about 120 m long (Catenary type).
• Rubber extrusion lines can be offered for insulating single cores conductors with EPR (Ethylene Propylene Rubber), with or without stripe color, or for sheathing cables with stranded cores using CPE (Rubber based with Chlorinated polyethylene) or a flame retardant low smoke compound EVA (Ethylene Vinyl Acetate)
