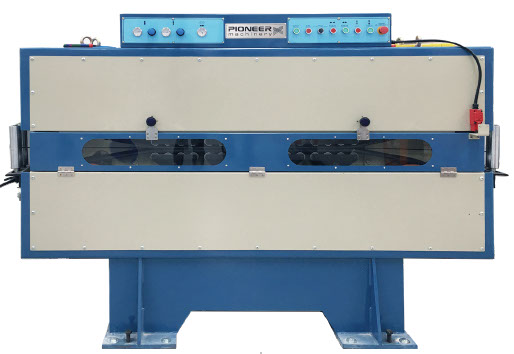

Belt Type Haul off Caterpillar
2 Flat type belts
• Haul off caterpillar consisting in 2 flat type belts that press the cable through multiple pneumatic pressing shoes
• Design for extrusion, taping or laying up lines
• Optionally (and depending on the maximum cable size) the caterpillar can be equipped with a dual wheel type length counter
• or belt type length counter. The counter itself a digital type with 5 digits plus proximity sensor

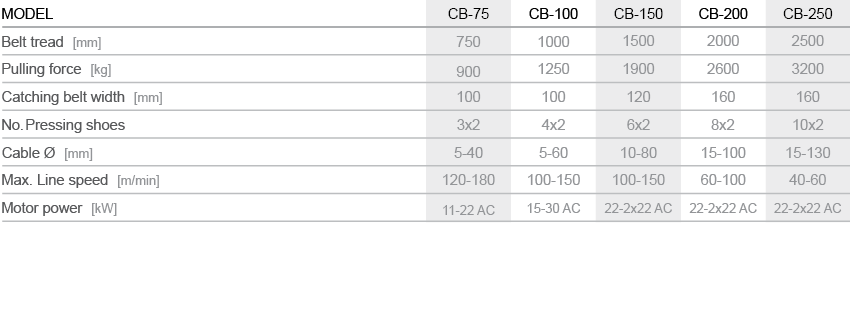

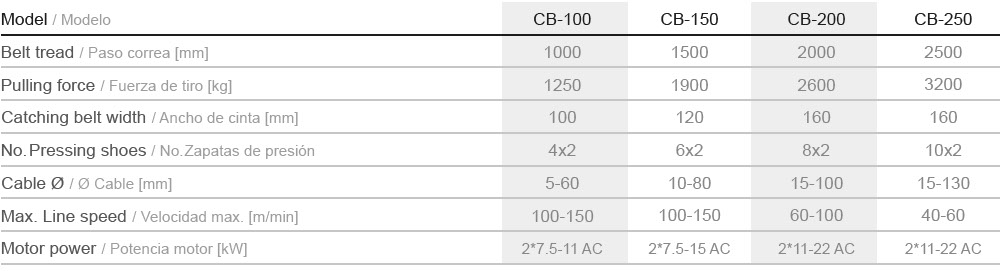

TECHNICAL DATA
YOU MAY ALSO BE INTERESTED IN
Contact us
Heavy Duty Haul off Caterpillar
For large cables on armouring processes
• Heavy duty haul off caterpillar specially designed for large cables on armouring processes
• Chain track linked with round groove rubber blocks up / down clamping type caterpillar with 2 soft leather belts laying on cable
• touching surface for smooth contact
• Round grooves increase the contact area and decrease the contact pressure
• Optionally equipped with a belt type length counter unit. Made in polyurethane, moves following the motion of the inlet coming cable
• and the measuring wheel sits on top of the belt. The counter itself is a digital type with 5 digits plus proximity sensor

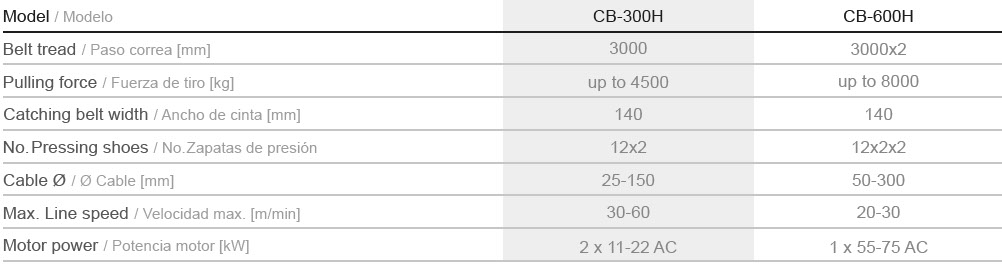

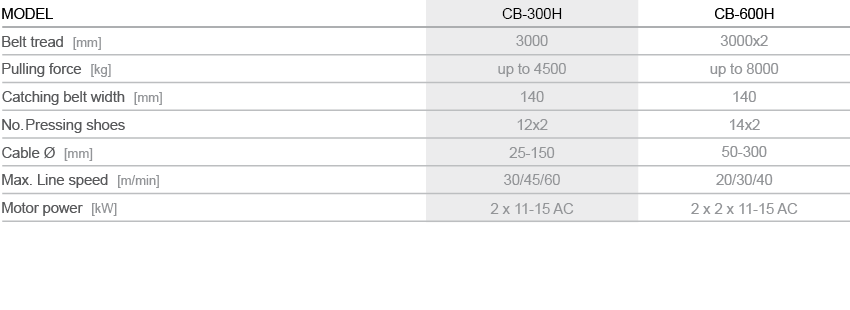

TECHNICAL DATA
Contact us
