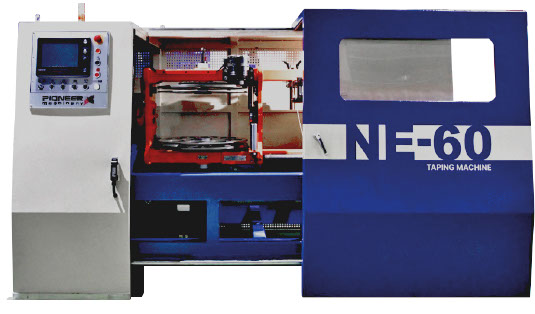

Concentric Taping Head Machine
For Copper or Aluminum
• Concentric taping head machine
• Suitable for copper and aluminum foils, textile, PE, paper as well as for other "non metal" tapes
• Tape tension control is done through hysteresis brake
• Taping head and pulling capstan are driven independently by AC servo motor
• HMI+PLC control system for pre-setting taping pitch, tape tension compensation and speed synchronization

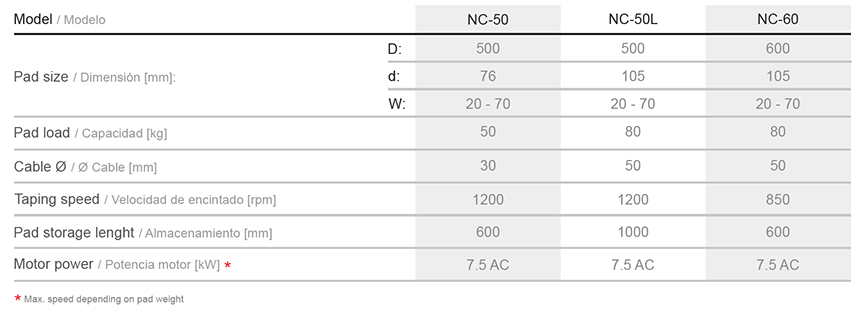

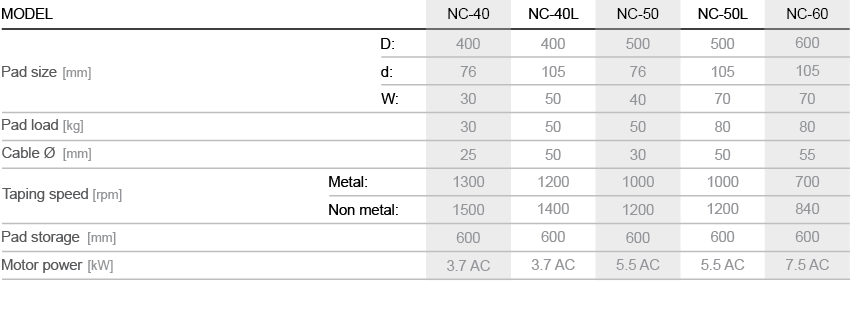

TECHNICAL DATA
Contact us
High Speed Dual Concentric Mica Tape
For mica taping on fire resistant cables
• High speed dual concentric mica taping head machine
• Designed for mica taping on fire resistant cables
• Tape tension control is done through hysteresis brake
• Taping head and pulling capstan are driven independently by AC servo motor
• HMI+PLC control system for pre-setting taping pitch, tape tension compensation and speed synchronization

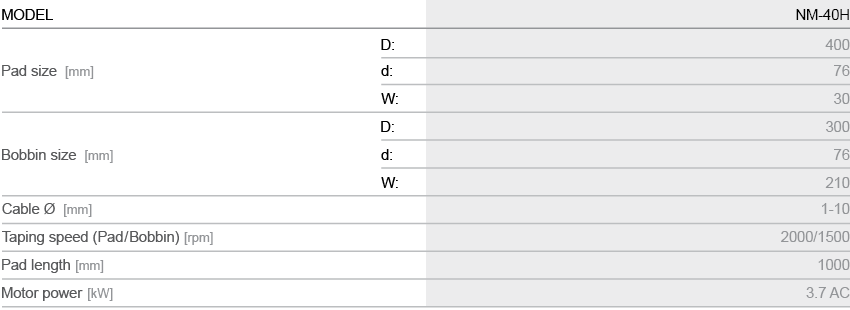

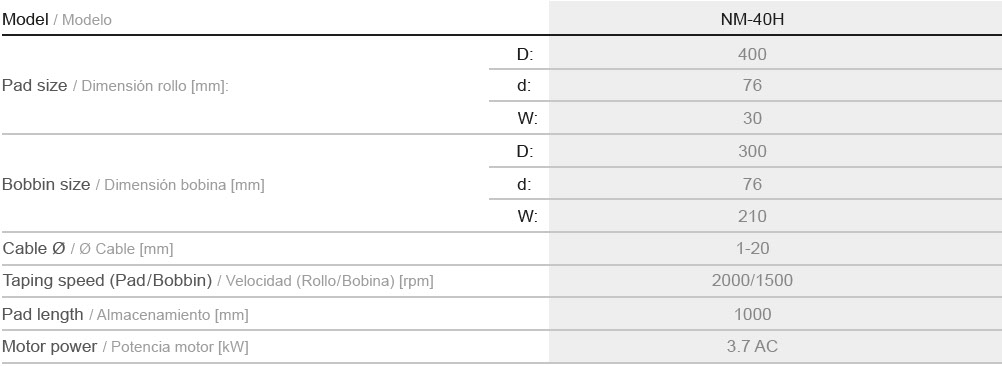

TECHNICAL DATA
Contact us
Eccentric Taping Machine
For Copper or Aluminum
• Eccentric taping head machine with 2 pads per head
• Designed to work with copper and aluminum foils, textile, PE, paper as well as for other non metal tapes
• Tape tension control is done through hysteresis brake
• Taping head and pulling capstan are driven independently by AC servo motor
• HMI+PLC control system for pre-setting taping pitch, tape tension compensation and speed synchronization

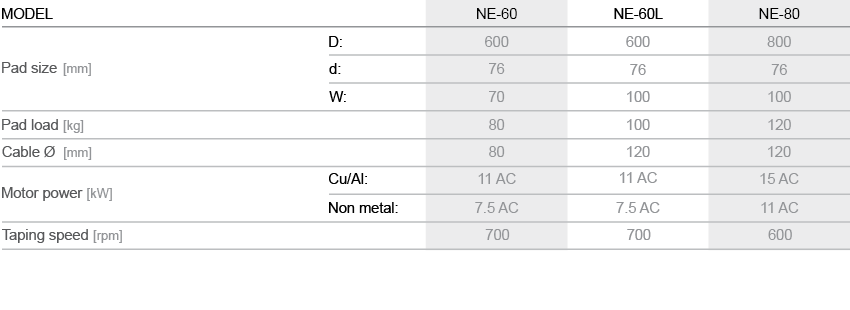

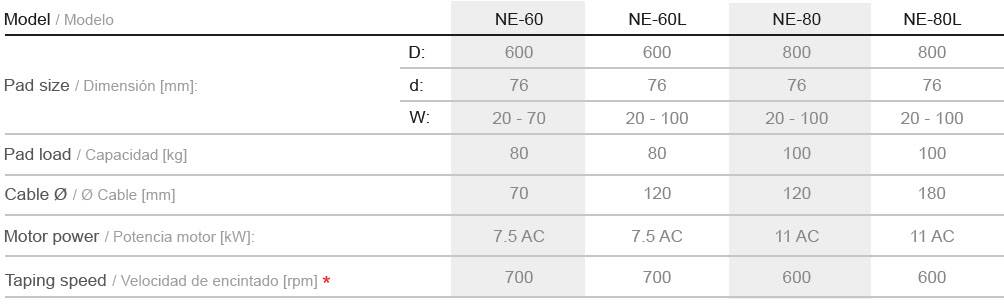

TECHNICAL DATA
Contact us
Eccentric Taping Machine
For Steel tapes
• Eccentric taping head machine with 2 pads per head
• Specially designed to work with steel tapes
• Tape tension control is done through hysteresis brake
• Taping head and pulling capstan are driven independently by AC servo motor
• HMI+PLC control system for pre-setting taping pitch, tape tension compensation and speed synchronization

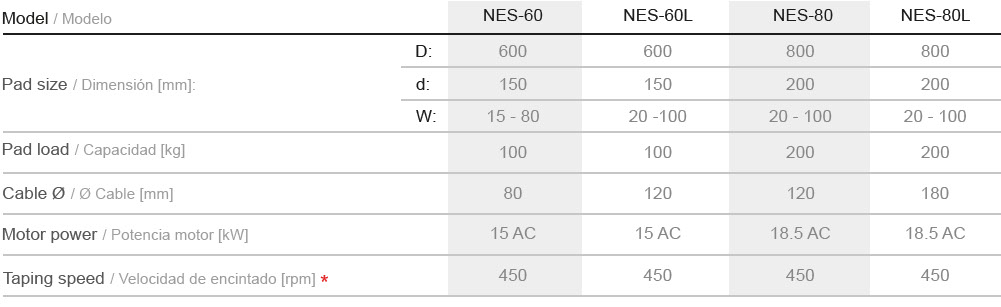

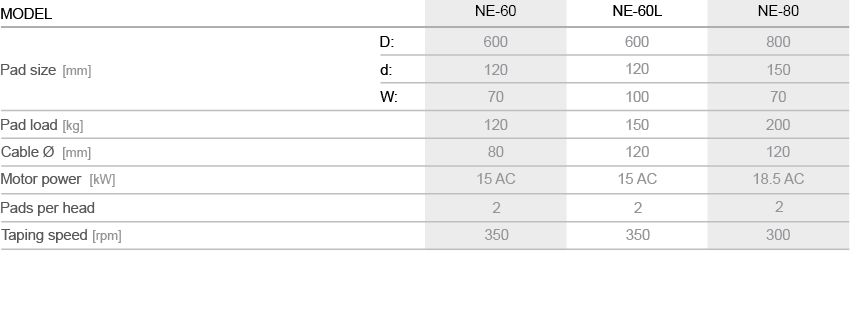

TECHNICAL DATA
