Multimotor Rod Breakdown Machine
For Copper, Aluminum and Aluminum alloy
• Horizontal slip type Rod Breakdown machine to draw copper rods of 8.0 mm diameter or to draw aluminum and aluminum alloy rods
• of 9.5 mm diameter
• Can draw copper wire down to 1.7 mm, aluminum alloy down to 2.6 mm and aluminum down to 2 mm
• Can be spooled by single take up, double take up with auto bobbin change and / or basket down coiler
• Designed with single step capstans having each one its own drawing die and driven individually by precise AC servo motors
• Freedom of die arrangement, higher efficiency and minimize the waste from very low slip rate
• Equipped with easily exchangeable long life tungsten carbide drawing rings, centralized oil cooling system for all planetary
• gear-reducers, and last drawing die motorized independently
• Provided with PLC+HMI control system for drawing speed synchronization and die schedule auto-arrangement

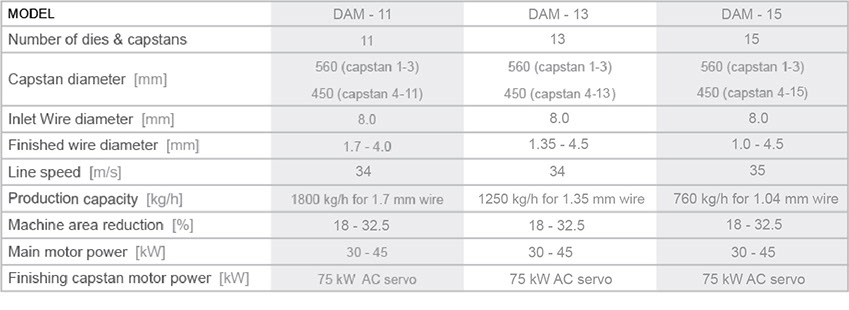

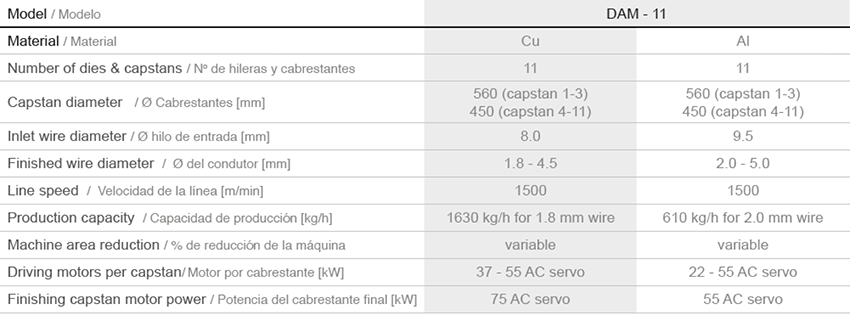

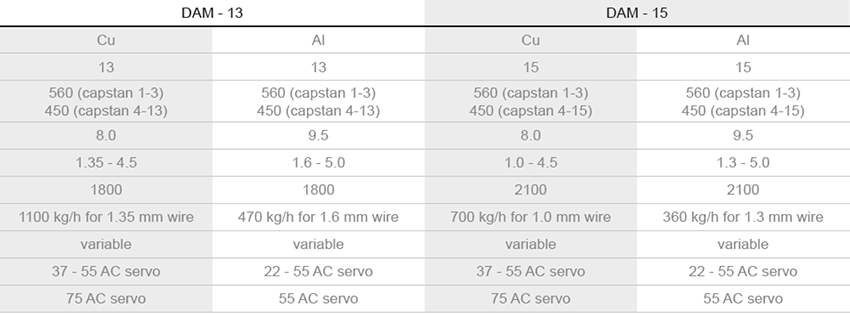

TECHNICAL DATA
Contact us

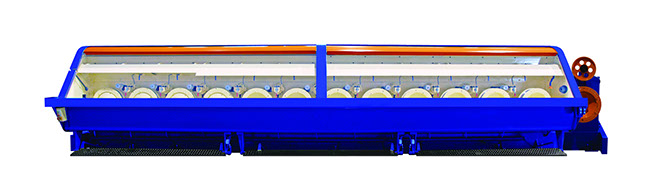

Standard Rod Breakdown Drawing Machine
for Copper or Aluminum
• Rod breakdown machine for copper or aluminum
• Single step capstans having each one its own drawing die
• Exchangeable long life tungsten carbide drawing rings
• Finishing capstan independently driven by AC servo motor, except for model DA-9
• HMI+PLC control system for drawing speed synchronization and die schedule auto-arrangement
• Optionally supplied with all necessary accessories

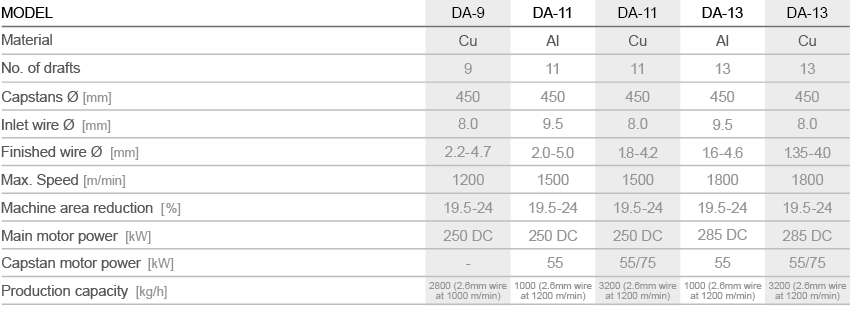

TECHNICAL DATA
YOU MAY ALSO BE INTERESTED IN
Contact us
Multiwire Drawing Machine
For Copper & Aluminum
• Designed to produce high flexible cables on class 5 or class 6, for battery cables, automotive cables or building cables
• Also can be supplied with a wide range of configurations to fit the customer's requirements
• Transmission system from the main driving motor to the several drawing rings made by timing belts
• Drawing rings are mounted in two layers to reduce length of the line
• Each drawing ring is mounted on a heavy rigid horizontal axis with oil lubricated bearings
• The drawing rings are multi-throats depending on the number of wires
• All of them are coated with zirconium oxide (ceramic)
• Last drawing ring is independently driven with the same motor that drives the annealer
• A large range of DC resistance annealers from 1.200 to 3.000 A can be provided according customer's requirement
• The annealer can be supplied with Nitrogen or steam chamber
• The annealing rings are mounted on horizontal axis mandrill's and have 200 to 250 mm diameter
• Each annealing ring has small grooves to allocate the wires separately
• Transmission among the several mandrills is made by flat belts
• Barrel pay offs or flyer pay offs can be supplied
• Single or double dynamic spoolers for 500 / 630 mm bobbins
• Double spooler shall be able to work all wires onto one single bobbin or to split the wires production onto two different bobbins

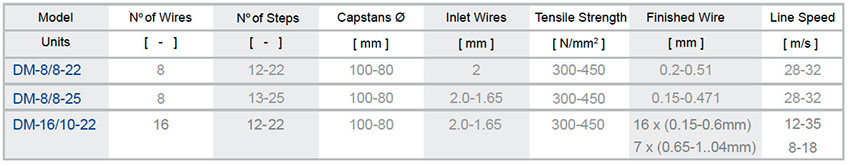

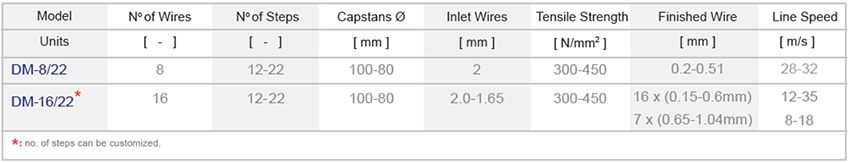

TECHNICAL DATA
YOU MAY ALSO BE INTERESTED IN
Contact us

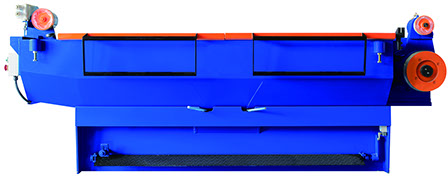

Medium Copper Wire Drawing Machine
For Copper
• Medium copper wire drawing machine
• 4 Multi-step capstans having each one its own drawing ring
• Exchangeable long life tungsten carbide drawing rings
• HMI+PLC control system for drawing speed synchronization and die schedule auto arrangement
• Optionally supplied with all necessary accessories such as pointing and stringing device, filters, etc.

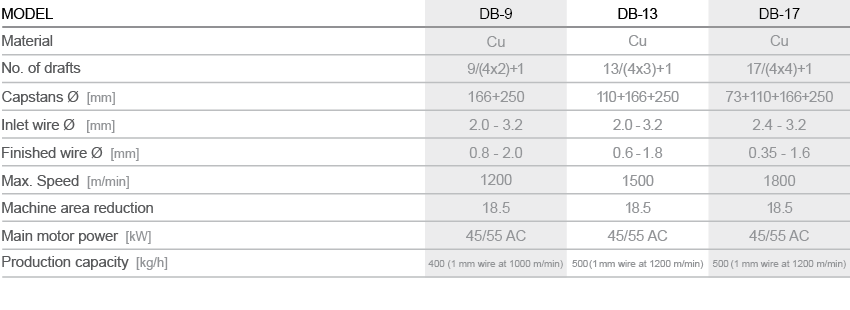

TECHNICAL DATA
YOU MAY ALSO BE INTERESTED IN
Contact us

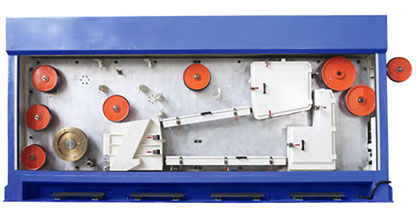

Annealers
Electric Continuous Annealer Series for Cu
• Copper continuous annealer process made by applying a high current onto the wire on its path through contact wheels
• Internally water-cooled wheels
• Includes a high power AC rectifier to supply DC voltage to heat and anneal the wire according the line speed
• HMI+PLC computer control is integrated in order to guarantee a zero hard copper starting
• Keeps a smooth and constant wire elongation during the whole range of drawing speeds and wire diameters
• Optionally driven by an independent 37 kW AC servo

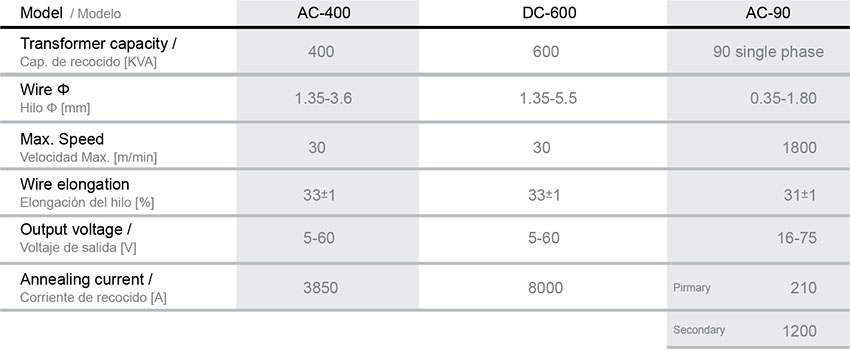

Electric Continuous Annealer
Series for Thick Copper Wires
AC 400
Electric Continuous Annealer
Series for Thick Copper Wires
DC 600
Medium Copper Wire Online Annealer AC 90

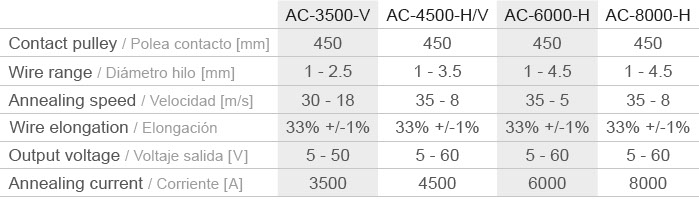

TECHNICAL DATA
Contact us
Basket Down Coiler
For Copper & Aluminum
• Vertical static down coiler machine for copper or aluminum wires
• Continuous take up process on wire drawing lines
• Equipped with an underground conveyor in order to load / unload the baskets to / from the working position

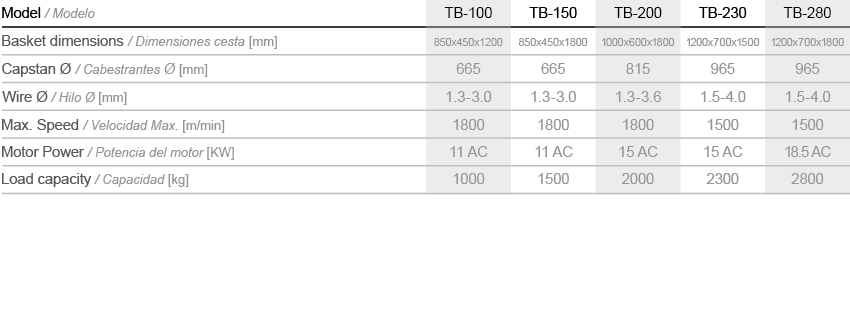

TECHNICAL DATA
Contact us

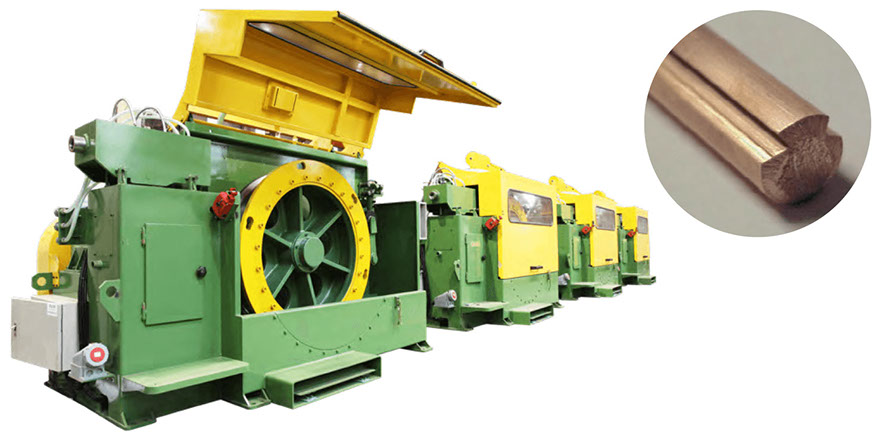

Catenary Contact Wire Drawing Machine
For copper alloys
- Multimotor drawing machine designed to produce catenary trolley profiles to be used on the electrification of trains, subways and trams
- Designed with extremely powerful over dimensioned capstans, able to pull hard copper alloys through different shapes of dies
- The cable shape design will follow the national standards of each country
- The transmission can be customized according to different Cu Alloys
- All dies are submerged on drawing emulsion and capstans are spouted with emulsion
- The machine is equipped with easily exchangeable long life tungsten carbide drawing rings
- Centralized oil cooling system on all planetary gear-reducers
- Provided with PLC+HMI control system for drawing speed synchronization
- Cross sections that can be produced: 80 / 100 / 107 / 120 / 150 mm
- Traversing take up 1250 / 1600 8 Tons

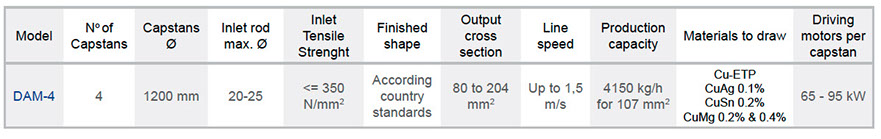

TECHNICAL DATA
Contact us
